Corsair TwinX1024-3200XL Memory Review
Corsair TwinX1024-3200XL Memory Review - PCSTATS
Abstract: Corsair TwinX 1024-3200XL DDR 512MB memory modules: 2-2-2-5 memory timings at 200MHz.
 83% Rating:
Filed under: Memory Published:  Author:
External Mfg. Website: Corsair Nov 25 2004   C. Sun
Home > Reviews > Memory > Corsair TwinX1024-3200XL

Benchmarks: UT2003, Maximum Overclock Tests and Conclusions

Unreal Tournament 2003


Unreal Tournament 2003 is the sequel to 1999's multiple 'Game of the Year' award winner. It uses the very latest Unreal Engine technology - where graphics, sound and game play are taken beyond the bleeding edge. Unreal Tournament 2003 employs the use of Vertex as well as Pixel Shaders and it's recommended that you use a DirectX 8 videocard to get the most out of the game.

UT2003 - 640x480
Flyby FPS Ranking

AMD Athlon64 System Results

2x 512MB Corsair TwinX4400PT (200/400) 289.15
2x 512MB OCZ PC3200 Plat LTD Ed (200/400)


2x 512MB Corsair TwinX3200XL (200/400)


2x 512MB Corsair TwinX3200XL (225/450)


Intel Pentium 4 System Results

2x 512MB Corsair TwinX4400PT (200/400) 199.41
2x 512MB OCZ PC3200 Plat LTD Ed (200/400) 204.1

2x 512MB Corsair TwinX3200XL (200/400)


2x 512MB Corsair TwinX3200XL (260/520)

Botmatch FPS Ranking

AMD Athlon64 System Results

2x 512MB Corsair TwinX4400PT (200/400) 92.18
2x 512MB OCZ PC3200 Plat LTD Ed (200/400)


2x 512MB Corsair TwinX3200XL (200/400)


2x 512MB Corsair TwinX3200XL (225/450)


Intel Pentium 4 System Results

2x 512MB Corsair TwinX4400PT (200/400) 65.26
2x 512MB OCZ PC3200 Plat LTD Ed (200/400) 67.95

2x 512MB Corsair TwinX3200XL (200/400)


2x 512MB Corsair TwinX3200XL (260/520)


If you want to game at stock speeds, you'll do better with some nice low latency DDR memory! Overclocking results continue to be rather unimpressive on our Athlon 64 system, which is not surprising.

Maximum DDR Overclocking Test

It's great to see how individual memory products stacks up against each other in their stock configuration, but we're also going to show how they compete in overclocking. The maximum overclocking results for some of the memory that we have tested recently are listed below. The higher the speed, the better.

Maximum Overclocked Speeds - PCstats Results

AMD System Results


Max Speed


OCZ PC3700 Gold Rev2 2-3-2-6 486 MHz
OCZ PC3200 Plat LTD Ed 2-2-2-5 480 MHz
OCZ PC3500EB Platinum 2.5-2-2-5 460 MHz
Mushkin PC3200 Special Edition 2-2-2-5 454 MHz
Corsair TwinX3200XL Pro 2-2-2-5 450 MHz
Corsair TwinX3200XL 2-2-2-5 450 MHz
PMI PC4200-512DG 2-3-3-6 434 MHz
Corsair TwinX1024-4400PT 3-4-4-8 410 MHz
OCZ PC4000EL Gold 2.5-4-4-7 406 MHz

Intel System Results


Max Speed


Corsair TwinX1024-4400PT 3-4-4-8 550 MHz
OCZ PC4200 EL 2.5-4-4-7 542 MHz
OCZ PC4000EL Gold 2.5-4-4-7 536 MHz
PMI PC4200-512DG 3-4-4-8 526 MHz
Corsair TwinX3200XL Pro 2.5-3-3-7 520 MHz
Corsair TwinX3200XL 2.5-3-3-7 520 MHz
GeIL PC4000 Platinum 2.5-4-4-7 520 MHz
Corsair TwinX4000PRO 3-4-4-8 520 MHz
Corsair TwinX4000 3-4-4-8 516 MHz
OCZ PC3200 Plat LTD Ed 2-2-2-5 480 MHz
Mushkin PC3200 Special Edition 2-2-2-5 472 MHz
OCZ PC3500EB Platinum 2.5-2-2-5 460 MHz
OCZ PC3700 Gold Rev2 2.5-4-4-7 460 MHz

Overall, the Corsair TwinX 3200XL DDR memory performed pretty well on both the Athlon64 and Intel test systems - not the fastest we've seen but definitely good. When you relax the timings on the Intel platform, the TwinX 3200XL DDR easily competes with PC4000/4200 class memory!

Low Latency Memory!

Manufacturers really do listen to the rants and raves from end users. No longer is the battle raging for the highest speed PC7700 DDR (or whatever the marketing department can get away with); the focus has shifted nicely to memory latency.

Informed consumers know that memory latency is just as important to performance as high speed DDR.Corsair's new TwinX 3200XL memory modules are the first sticks of DDR RAM on the market built with Samsung's hot new low latency DRAM, not the older EOL Winbond memory modules.

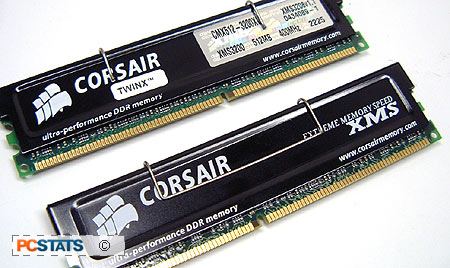

The pair of TwinX 3200XL 512MB DIMMs that we tested are officially rated to run at 200 MHz, with timings of 2-2-2-5. This goes for every platform, be it AthlonXP, Athlon64 or Pentium4.

Our benchmarks showed that the performance of the TwinX 3200XL DDR memory at stock speeds was outstanding! In terms of overclocking, we were able to hit a very respectable 225 MHz on the Athlon64 system with the most aggressive memory timings available. With the Intel test system, things were even better... The TwinX 3200XL DDR reached as high as 260 MHz, using 2.5-3-3-7 timings. That's better than a lot of PC4000 rated memory that PCstats has tested! To top it all off, Corsair has one of the best warranties in the industry.

With a retail price of $299 CDN ($251 US), the Corsair TwinX 3200XL memory is priced aggressively, and I'd recommend you grab a pair for your rig, even if you like to run at stock speeds.
