Amacom Flip Disk - PCSTATS
Abstract: Robust and portable high capacity storage is the goal of just about anyone with more then one computer. This is one solution, does it work?
 70% Rating:
Filed under: Hard Drives/SSD Published:  Author:
External Mfg. Website: Amacom Jun 14 2000   Max Page
Home > Reviews > Hard Drives/SSD > Amacom Flip Disk

Interface & features:

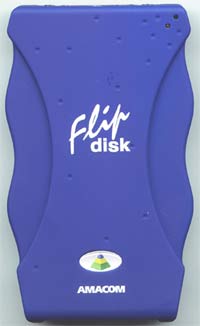

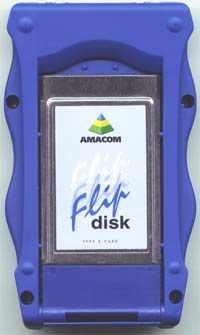

The FlipDisk has the capabilities to connect to a parallel port or type 2 PCMCIA interface on a laptop. Ideally designed for PCMCIA interfaces, the Flip Disk has some unique features which its name draws from. Located on the underside of the paperback sized device is nestled a PCMCIA adapter card. This card enables the device to be attached, once it has be 'fliped' open.

Amacom has taken a design stance with this device that it should be as portable, and simple to use as possible. By locating the interface on the device they remove the hassle of lugging around cables and power supplies. When the Flip Disk is connected to the PCMCIA port no external power source is necessary.

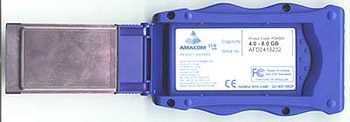

With the PCMCIA-adaper flipped out, the drive can be inserted into any PCMCIA port. The adapter has been designed with a double hinged joint, so the device will sit flat. Small hand grips are positioned on the plastic hinge to allow firm griping when removing or installing the device. While the curves on the Flip Disk would seem to imply their use as a hand grip, they emphasize gripping from the hinge joint in its literature to ensure the components are well supported during their installation and removal. This hinge is also the weakest link in the device.
