Gigabyte GA-P67A-UD4 Intel P67 Motherboard Review
Gigabyte GA-P67A-UD4 Intel P67 Motherboard Review  - PCSTATS

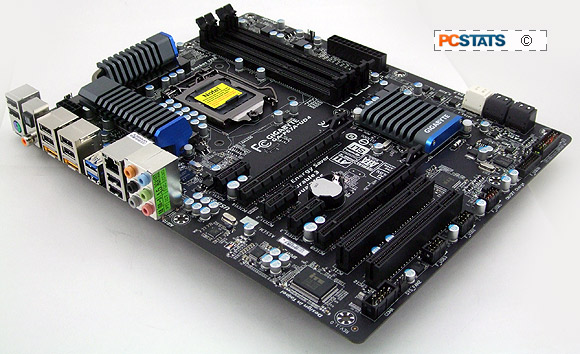

In this review PCSTATS is testing the Intel P67-based Gigabyte GA-P67A-UD4 motherboard. This is a mainstream ATX motherboard with a great set of workstation features and connectivity, all on a sleek matt-black PCB that looks fantastic in black computer chassis.
 75% Rating:
Filed under: Motherboards Published:  Author:
External Mfg. Website: Gigabyte Aug 16 2011   Max Page
Home > Reviews > Motherboards > Gigabyte GA-P67A-UD4

System Power Draw and Final Conclusions

PCSTATS measures total system power draw (watts) with the aid of an Extech 380803 AC Power Analyzer and A-PFC compliant Seasonic SS-760KM power supply. The meter is placed between the 120V AC outlet and the PC power supply and the computer stressed. Total system power draw is recorded and compared to the PC's idle state.

Total System Power Draw

CPU Loaded

GFX Loaded

Intel Core i5 2500K
nVidia Geforce GTX470

102W 154W 240W

(Idel @ desktop)

(via Prime95)

(via 3DM06)

At idle the Gigabyte GA-P67A-UD4 system draws 102W, under CPU loaded conditions power draw jumps to 154W. 3DMark06 pushes power draw to a peak of 240W.

Gigabyte's GA-P67A-UD4 motherboard uses a 12-phase power VRM design built around 'Driver MOSFETs' which combine the functions of a driver, high MOSFET and low MOSFET into one small power-efficient board mounted component. This integrated circuit improves power efficiency, reduces heat and has a smaller footprint than previous circuit designs.

Gigabyte VRM circuitry includes MOSFETS and LOW RDS Ferrite Chokes.

This mobo uses a 4-layer PCB with 2oz. copper substrate that pulls double-duty as a board level heatsink for surface mount devices.

Time to wrap up this PCSTATS motherboard review!

Final Thoughts: Intel P67 Total Recalled?

To sum up, in spite of the scary recall that affected the first crop of Intel P67 motherboards, Gigabyte's GA-P67A-UD4 motherboard holds up in the benchmarks with the best Intel P67 and Intel Z68 boards have to offer. Feature wise, the Gigabyte GA-P67A-UD4 is well equipped for a mainstream platform and competitively priced.

Frankly speaking, the Intel P67 offers the same core features as the newer Intel Z68 chipset, minus a few things of debatable usefulness to enthusiasts (ie. onboard graphics, Intel SRT and Intel QuickSync). A board like the Gigabyte GA-P67A-UD4 would be a fantastic deal... particularly if you're never going to use any of those things we just rattled off... if only it were just a few dollars less expensive than an equally outfitted Intel Z68 motherboard such as this. It's not - $169CDN (Canada Computers) $159CDN (NCIX), $180 (Newegg) - so PCSTATS is going to have to sit on the fence on this one.

As it stands the Gigabyte's GA-P67A-UD4 is a good motherboard for a dual-videocard gaming system because it offers two-way SLI/Crossfire support, plenty of USB 3.0 and enough SATA III to satisfy a pair of SSDs. If you're never going to use the IGP-CPU in your Sandybridge processor, an Intel P67 board will get you in the game for less money without any performance hit relative to Z68 platforms.

If you're hell bent on sticking with mechanical SATA hard drives, the Intel Z68 platform and a little thing called Intel SRT tips the scales heavily in its favour.

Bottom line, let these benchmark results serve as a reminder that newer model numbers don't always mean better performance figures. Features are easy to add, but raw performance is what a computer draws on every day of the week. While the Intel P67 chipset has been recalled, re-issued in a b3-stepping and out-modeled by the Intel Z68, it offers exactly the same benchmark performance to SSD-installed operating systems. In short, if you can find it cheap, snap it up and lock a couple graphics cards into the Gigabyte GA-P67A-UD4 motherboard!

Find out about this and many other reviews by joining the Weekly PCstats.com Newsletter today! Catch all of PCSTATS latest reviews right here.
