MSI's Q1:2001 Motherboard Line-up
MSI's Q1:2001 Motherboard Line-up - PCSTATS
MSI has a solid line up of motherboards for the first quarter of 2001. While boards like the MS-6332, MS-6364, and PM133M Pro have not yet been officially announced....
Filed under: Motherboards Published:  Author:
External Mfg. Website: MSI Dec 31 2000   Max Page
Home > Reviews > Motherboards > MSI

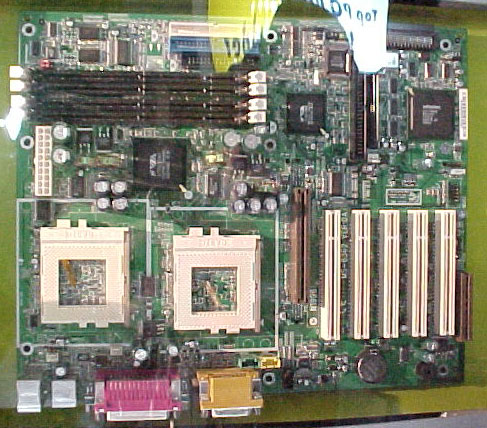

694D Master-S Motherboard

Briefly: VIA 694XDP based dual socket 370 motherboard with onboard Adaptec 160M ultra SCSI, Ultra ATA/100, 2GB DDR support, 4 USB ports and Smart D-LED system diagnosis.

694D Master-S
CPU: Dual Intel Pentium III FC-PGA socket 370 processors upto 1.0Ghz at 66/100/133 FSB
Features:
  • VIA 694XDP chipset
  • 66/100/133Mhz Front Side Bus
  • Smart D-LED (optional), Fuzzy Logic 3, PC Alert III
  • DMI
  • Supports Ultra ATA 100
SCSI:
  • Adaptec AIC-7899 chipset
  • Supports Ultra (SE) devices
Bus Speed:
  • Supports 160MB/sec single channel Ultra SCSI
Audio:
  • Integrated in chipset
Memory:
  • Four 184-pin DIMM sockets support PC200/PC266 DDR SDRAM
  • supports up to a maximum of 2GB DDR SDRAM
I/O Connectors and Ports:
  • 2 Bus master IDE channels supporting DMA 33/66/100 for upto 4 IDE devices
  • PS/2 keyboard and PS/2 mouse connectors
  • 1 floppy port
  • 1 parallel port (EPP/ECP)
  • 2 serial ports
  • 4 USB connectors (2 front, 2 rear)
  • Audio connectors (line-in, line-out, mic-in, game port)
Expansion Slots:
  • 1 AGP slot
  • 5 PCI slots
  • 1 CNR slot
Miscellaneous:
  • ATX formfactor
  • Dual Socket 370
  • Hardware monitoring - CPU / system voltage detection. CPU, Chassis, power supply fan speed monitoring. Processor and system temperature monitoring
  • Wake on LAN header
  • Wake on modem header
