Overclocking Results:

stock max. oc motherboard speed: 200 mhz 255 mhz if you're new to Overclocking and not sure what to do, check out these two excellent Guides for some pointers: Overclocking the CPU and Memory Overclocking the Videocard

Before the overclocking started, the CPU multiplier was first set to 4x and memory frequency set to run in 133 MHz mode. These settings ensure that neither the processor or memory will hold the motherboard back.

Starting at 200 MHz, the clock speed was increased slowly in 5 MHz intervals. Unfortunately, processor overclocking did not go very far and the Gigabyte GA-K8N51PVMT-9 topped out at 237 MHz.

Not great as overclocking goes, but then again we should remember that the GeForce 6150 is not intended for the enthusiast markets. Mainstream consumers want reliability and functionality, not overclocking options.

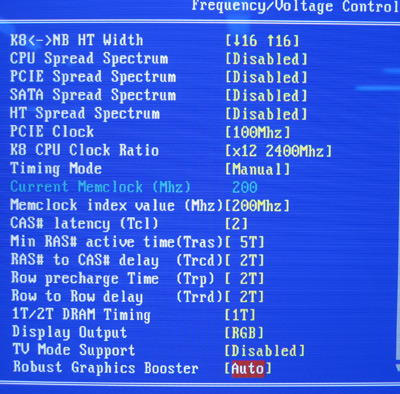

To access the "more advanced features" you have to first press CTRL + F1 in the root menu. The motherboard frequency can be adjusted between 200-300 MHz in 1 MHz increments. HTT speed and width between the GeForce 6150 Northbridge and processor can also be adjusted, speed and width wise. Memory timing adjustments are also found in the Frequency Voltage Control section.

PCStats Test System Specs:

processor: amd athlon64 4000+ clock speed: 12 x 200 mhz = 2.4 ghz motherboards: albatron k8x890 pro ii (k8t890) msi rs480m2-il (rs480) asrock 939dual-sata2 (uli m1695) chaintech zenith vnf4 ultra (nf4 ultra) dfi lanparty nf4 sli-dr (nf4 sli) epox 9npa+ sli (nf4 sli) ecs kn1 extreme sli (nf4 sli) foxconn winfast 6150k8ma-8ekrs (gf6150) gigabyte gv-k8n51pvmt-9 (gf6150) videocard: msi nx7800gtx-vt2d256e memory: 2x 512mb pdp pdc1g3200+xblk hard drive: 74gb western digital raptor sata cdrom: aopen combo 52x heatsink: amd athlon64 4000+ reference heatsink powersupply: pc power & cooling turbocool 510 sli software setup windowsxp forceware 6.53 forceware 78.01 workstation benchmarks sysmark 2004 business winstone 2004 content creation 2004 super pi sisoft sandra 2005 pcmark04 pcmark05 3dmark2001se 3dmark05 aquamark3 comanche 4 x2: the threat ut2003 ut2004 doom 3
