More details on the M12 700W Power Supply

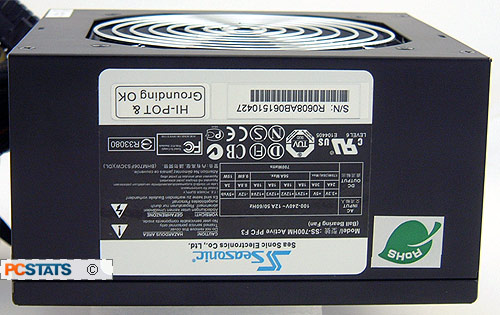

The Seasonic M12 700W power supply supports over voltage, over power and short circuit protection in order to protect you, your power supply and your system from damage. The M12 700W is designed to operate in temperatures between 0-50 degrees Celsius and in relative humidity between 20-80%.

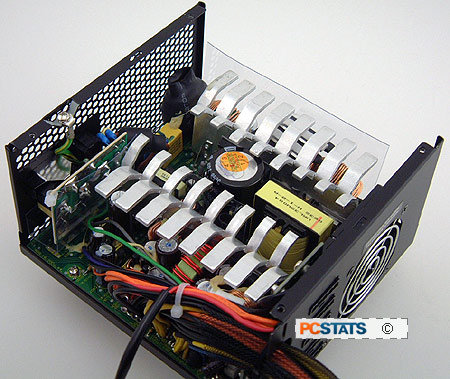

Removing the top cover of the power supply exposes the innards of the Seasonic M12 700W, please keep in mind though by doing so voids all warranties. The 10 Amp fuse is removable and can be replaced if necessary, although getting to it will require you to remove the rear exhaust fan as well.... so it is technically not user serviceable. Once the top has been taken off the Seasonic M12 700W it's easy to see the main components of the unit.

A 120x120x25mm ADDA DC Brushless fan (model AD1212HB-A71GL) is used to cool the electronic circuitry and power heatsinks inside the power supply. The fan spins at a maximum speed of 2050RPM while pushing 83.21CFM of air, and for this creates about 38dBA noise. The ADDA fan is voltage controlled by the power supply and only spins up to maximum speed when the M12 700W gets hot.

The fan is detachable which great for users who are handy, it connects to the power supply PCB via a two pin fan connector. Seasonic has an excellent reputation for building quiet power supplies and the Seasonic M12 700W is no different. During testing the power supply internals did not get very hot even while under a heavy system load, and the 120mm ADDA fan remained appropriately quiet.

Now let's test this 700W power supply under load!
