MSI NX8600GTS-T2D256E-OC GeForce 8600GTS Videocard Review
MSI NX8600GTS-T2D256E-OC GeForce 8600GTS Videocard Review - PCSTATS
MSI's NX8600GTS-T2D256E-OC videocard is based on the new nVIDIA GeForce 8600GTS core. The card packs in a modest 256MB of GDDR3 memory.
 84% Rating:
Filed under: Video Cards Published:  Author:
External Mfg. Website: MSI Apr 19 2007   C. Sun
Home > Reviews > Video Cards > MSI NX8600GTS-T2D256E-OC

nVidia G84 Core & Low Noise Videocard Cooling

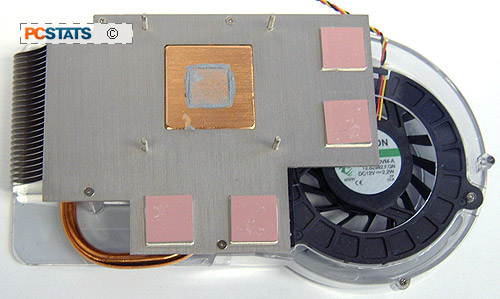

The dual slot videocard heatsink that MSI installed onto the NX8600GTS-T2D256E-OC looks a lot like Arctic Cooling's Silencer series. The large heatsink mounts to the videocard via four points adjacent to the G84 graphics core, and cools with both the core and four GDDR3 BGA memory modules quietly.

The GeForce 8600GTS core comes in contact with a copper heatspreader which is soldered to a heatpipe that transfers heat to the larger aluminum heatsink.

The memory use a thick thermal pad and connect to a large aluminum heatspreader which also comes in contact with the finned aluminum heatsink. Both the core and memory are cooled with a temperature controlled Sunon Maglev 50mm fan.

The fan blows air across the finned aluminum heatsink then out of the case through the exhaust grill. This allows the videocard heatsink to act as an exhaust for the computer too, and it makes sense since you don't want that hot air from the videocard cycling inside the PC.

During operation under intense videocard load, the custom cooler on the MSI NX8600GTS-T2D256E-OC remained extremely quiet and when installed into a case will not be heard. Nice, this is the kind of extra attention we like to see from videocard manufacturers!

nVidia PureVideo High Definition

The MSI GeForce 8600GTS videocard supports HDCP over both DVI and HDMI, although the latter connector is up to the manufacturers' discretion to implement. HDMI is not included on the MSI NX8600GTS-T2D256E-OC, though a DVI-to-HDMI could be used here. The GeForce 8600GT may or may not have HDCP support, that's up to the individual manufacturers.

With the release of the GeForce 8600GTS core, nVIDIA is also updating its PureVideo technology. Dubbed PureVideo HD, the videocard can now handle the entire decoding process of HD-DVD and Blu-Ray movies. According to nVIDIA, 100% of high definition video decoding can be off loaded onto the videocard at speeds of up to 40Mb/s, rather than straddling the CPU with all of this extra work.

As it is PureVideo HD will be of benefit to Blu-Ray/HD-DVD type movies because it does not boost WMV9 playback. That means high definition videos using the Microsoft standard will only be accelerated to previous PureVideo levels.

Examining CPU Load with PureVideo HD

To test PureVideo's High Definition accelerating capabilities on the MSI NX8600GTS-T2D256E-OC, PCSTATS will playback a video downloaded from Microsoft's WMV HD Content Showcase through Windows Media Player 10. "The Discoverers" (IMAX) video is available in both 720P and 1080P formats. AMD processor utilization will be monitored via Task Manager.

When running the 720P version of the Discoverers video over the MSI NX8600GTS-T2D256E-OC videocard, CPU usage jumps between 18-20% which is quite low. THe MSI NX8600GTS-T2D256E-OC allows you to watch High Definition videos while running tasks in the background.

CPU usage when the 1080P version of the video is playing is even lower. In PCSTATS test the CPU usage dipped to 14%! That's definitely very good and it's great to see how quickly nVIDIA has adopted High Definition acceleration. Next up, overclocking tests on the MSI NX8600GTS-T2D256E-OC and a look at power consumption from loaded and idle videocards.
