PNY XLR8 D22GX85XL-5 2GB PC2-8500 Memory Review
PNY XLR8 D22GX85XL-5 2GB PC2-8500 Memory Review - PCSTATS
PNY guarantees that its memory will run at DDR2-1066 MHz (PC2-8500) speeds, in tune with Intel's 333 MHz Core 2 Duo/Quad processors and the new Intel P35 Express chipset.
 86% Rating:
Filed under: Memory Published:  Author:
External Mfg. Website: PNY Jun 13 2007   Max Page
Home > Reviews > Memory > PNY D22GX85XL-5

Overclocking PNY's XLR8 Memory

Overclocking Results:
4-4-4-12 5-5-5-15
memory speed:

1120 MHz

1220 MHz

If you're new to Overclocking and not sure what to do, check out these two excellent Guides for some pointers:
Overclocking the CPU and Memory
Overclocking the Videocard

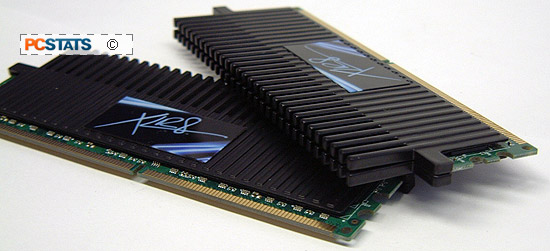

Before PCSTATS will overclock the PNY XLR8 D22GX85XL-5 for your reading pleasure, we first nned to adjust the memory to run at (tighter) 4-4-4-12 CAS latency timings. The PNY XLR8 D22GX85XL-5 did not have any issues with this, so we'll see how high we can overclock with these timings first.

Starting from 800 MHz, the PNY XLR8 D22GX85XL-5 memory clock speed was increased 20MHz at a time.

At 960 MHz the PNY memory started to give us problems so the DDR2 voltage was increased from 1.8V to 2.0V. That stabilized things and allowed the PNY XLR8 D22GX85XL-5 modules to overclock further. PNY's XLR8 RAM gave us some more problems at 1040 MHz, so power was increased to 2.1V.

The maximum speed the PNY XLR8 D22GX85XL-5 memory was operate at with tight 4-4-4-12 timings was 1120 MHz (with 2.2V). Compared to PNY's other memory kit, that's not bad at all.

PCSTATS next loosening the memory timings back down to 5-5-5-15 (stock), and started overclocking from 1120 MHz with 2.2V. At 1200 MHz the PNY XLR8 D22GX85XL-5 memory required a bit more voltage, so that was increased to 2.3V.

The fun quickly ended, and PNY's XLR8 D22GX85XL-5 fizzled out at a maximum speed of 1220 MHz (with 5-5-5-15 timings and 2.3V). The memory was fairly warm by this point, and overclocking any further seriously affected stability.

Increasing DDR-2 memory voltage did not allow the memory to reach any higher speeds.

Prelude to Benchmarks

The details of how the PNY XLR8 D22GX85XL-5 Performance Edition memory test system was configured for benchmarking, including the specific hardware, software drivers, operating system and benchmark versions are indicated below. In the second column are the general specs for the reference platforms this pair of PC2-8500 DDR-2 memory is to be compared against. Please take a moment to look over PCSTATS test system configurations before moving on to the individual benchmark results.

PCSTATS Test System Configurations
test system

intel Core 2 Duo E6600

Clock Speed:

9 x 266 MHz = 2.4 GHz


Asus P5N32-E Plus (NF 650i)



Memory: 2GB Kit Patriot PDC22G8000+XBLK
2GB Kit Corsair Twin2X1024-6400C4
2GB Kit OCZ PC2-7200 Platinum XTC SLI Ready
2GB Kit Corsair DOMINATOR Twin2X2048-9136C5D
2GB Kit Corsair DOMINATOR Twin2X2048-8888C4DF
2GB Kit PNY XLR8 D22GX85XL-5
Hard Drive: 74GB Western Digital Raptor WD740
CDROM: AOpen Combo 52x
PowerSupply: PC Power & Cooling TurboCool 510 SLI
Heatsink: Intel Reference
Software Setup:

Microsoft WindowsXP SP2
nVIDIA Forceware NF4 9.34
nVIDIA Forceware 91.27


Business Winstone 2004
Content Creation 2004
SiSoft Sandra 2005
Doom 3
Quake 4
