Cooler Master HAF 932 Full Tower Case Review
Cooler Master HAF 932 Full Tower Case Review - PCSTATS
At nearly two feet tall and weighing in at just under 30 pounds, the Cooler Master HAF 932 High Air Flow Chassis is an imposing full tower ATX case, marketed towards gamers and overclockers with an array of fans.
 85% Rating:
Filed under: Cases Published:  Author:
External Mfg. Website: CoolerMaster Nov 25 2009   J. Apong
Home > Reviews > Cases > CoolerMaster HAF 932

Internal Case Features: Opening 'er up

Okay that was a horrible pun. With the side panel we get a better view of HAF 932's guts. The space is cavernous but 3.5" and 5.25" devices are well organized into little groups along the front of the case. Some full tower cases place the hard drives along the bottom, or have optical drive bays which interfere with long motherboards. Neither problem exists with the HAF 932.

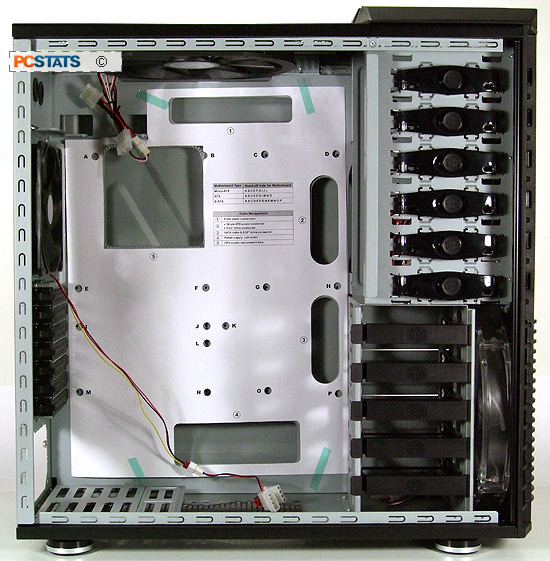

The first you'll notice is the cheat sheet taped to the non-removable motherboard tray in the HAF 932. It indicates the locations of various screw holes for motherboard installation, which differ if the board is m-ATX, ATX or something server-sized. It's helpful if you don't already know where to screw in those brass motherboard stand offs.

With the opposite side panel removed we can see a special hole in the motherboard tray that will make your life easier. Guaranteed.

The motherboard tray isn't removable, but it can be accessed from the secondary side panel.

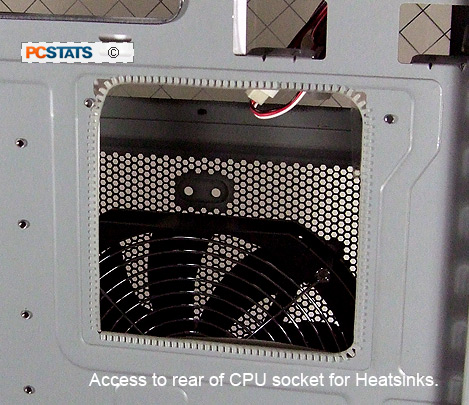

The motherboard tray is not removable, so for heatsinks that have rear support plates Cooler Master has thoughtfully provided a hole in the tray underneath the motherboard's CPU socket. Badda Bing, Badda Boom, installing CPU heatsinks with a back plate is no longer a royal pain. This is a godsend for anyone who has been forced into deconstructing their entire system in order to change a CPU, or cooler.

Another nice touch is making the HAF 932 wider than a standard ATX case. Other chassis like the Eneremax's Uber Chakra have side-mounted internal fans which intrude enough into the interior space to interfere with tall tower heatpipe coolers. Don't believe me, just try mounting the Thermalright Ultra 120 Extreme in that Chakra. The Cooler Master HAF 932 has 20cm of headroom above the motherboard, more than enough room for uber-tall 165mm heatsinks like the Cooler Master Hyper Z600.

Why is the power supply mounted on the bottom of the Cooler Master HAF 932 chassis?

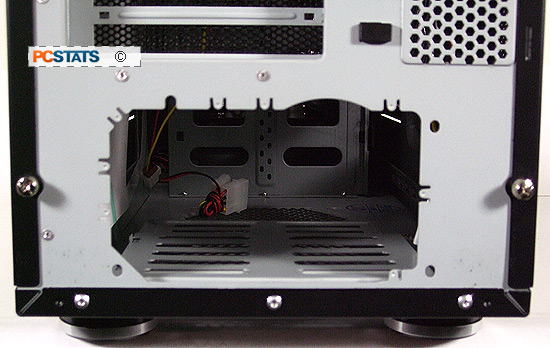

Weight my friend. And heat, and cable clutter, and balance. The HAF 932 has enough power supply space for larger, heavier power supplies like the Enermax Galaxy 850w or the Coolmax CUQ-1200B (at least 12"). Considering +1000W units can weigh around 15lbs, this arrangement makes life easier for everyone involved. Cooler Master also supply an 8-pin power extension cable for bottom mounted PSU's whose own cable is too short.

The power supply can also be swapped up into the upper PSU bay (by default this is the water cooling area), although again that will require the removal of the top panel fan. Given the height of the HAF 932, it will probably be easier for most users to mount the power supply on the bottom anyhow. There is grating on the bottom of the case to allow a healthy convective airflow to occur through the power supply if it fanless, otherwise air is sucked up through the power supply fan through this opening without disrupting internal case airflow.
