Gigabyte GA-Z77X-UD4H Intel Z77 Motherboard Review
Gigabyte GA-Z77X-UD4H Intel Z77 Motherboard Review - PCSTATS
PCSTATS really liked what we saw from Gigabyte's Intel Z77 based GA-Z77X-UD4H motherboard -- the board graciously offers up a comprehensive feature set, its layout and implementation are well executed and the build quality is first rate.
 84% Rating:
Filed under: Motherboards Published:  Author:
External Mfg. Website: Gigabyte May 02 2013   Max Page
Home > Reviews > Motherboards > Gigabyte GA-Z77X-UD4H

Overclocking Report and BIOS Walk through

Overclocking Results:
stock max. oc
cpu multiplier: x33 x47
motherboard blck: 1100 mhz

1600 mhz

if you're new to Overclocking and not sure what to do, check out these two excellent Guides for some pointers:
Overclocking the CPU and Memory
Overclocking the Videocard

Since Intel LGA1155 CPUs hit the streets overclocking has taken a bit of a strange turn... If you were savvy enough to buy an unlocked chip from the get-go, you probably already know the unlocked CPU multiplier will let you push these chips into the mid-4 GHz range with little effort. Owing to the integrated graphics on the processors, overclocking via the processor BCLK beyond about 105MHz hasn't proven to be very practical.

Gigabyte's GA-Z77X-UD4H motherboard offers up a full range of CPU and IGP overclocking controls in the BIOS and within Windows 7 via TouchBIOS. Since BCLK overclocking is generally limited to 105MHz, PCSTATS left memory settings alone and focused on the CPU multiplier.

Starting from the default x33, PCSTATS pushed the CPU multiplier to x39, x42, x44 and x47 where the system crashed. The Core i5 2500K chip PCSTATS tests with generally hits the wall at x47, that's where our overclocking adventure stopped this time too. Since the Gigabyte GA-Z77X-UD4H motherboard is equipped with onboard video outputs PCSTATS had a go at overclocking the Intel HD 3000 IGP as well. From the stock IGP speed of 1100MHz, PCSTATS was able to overclock the Intel HD 3000 graphics core to 1600MHz without much difficulty.


Redundant BIOS chips are good insurance

Gigabyte's UEFI BIOS

The Gigabyte UEFI '3D BIOS' user interface is intended to help novice PC users interact with complicated BIOS settings on friendlier terms, when you mouse over different bits of the board photograph, like the CPU area, memory or expansion slots, it bring up the relevant UEFI BIOS option menu. Advanced BIOS options are available at the bottom, which is where we'll be focusing our attention.

Main Overclocking and Frequency control menu for adjusting the CPU multiplier and BCLK frequency among other options are found in the Advanced Frequency Settings menu.


Advanced CPU Overclocking Tools


Advanced Memory settings

The BIOS has extensive memory control options, timings can be set down to the individual clocks cycle, per channel.


Memory channel timing control.

There are a lot of voltage control options in the GA-Z77X-UD4H BIOS; for memory, chipset, CPU and motherboard VRM. There's also a slew of really advanced voltage controls available via Gigabyte's '3DPower' menu from the Windows desktop.


CPU Core Voltage controls


3D Power Voltage Controls


DRAM Voltage controls

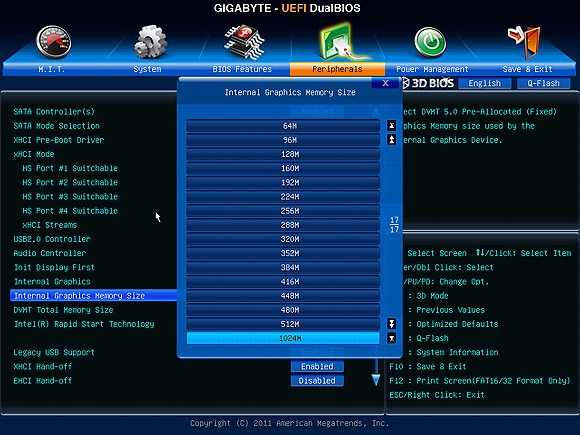

Overclocking and onboard memory allocation for the integrated Intel HD 3000/4000 graphics.
