Corsair DOMINATOR Twin2X2048-9136C5D DDR2-1142 Performance Memory
Corsair DOMINATOR Twin2X2048-9136C5D DDR2-1142 Performance Memory - PCSTATS
Corsair's DOMINATOR Twin2X2048-9136C5D part is a 2GB dual channel memory kit, each module bing 1024MB in size. The Twin2X2048-9136C5D is rated to run at speeds up to DDR2-1142 MHz with 5-5-5-15 memory timings.
 90% Rating:
Filed under: Memory Published:  Author:
External Mfg. Website: Corsair Feb 05 2007   C. Sun
Home > Reviews > Memory > Corsair Twin2X2048-9136C5D

Max OC Chart and Conclusions

It's great to see how individual memory stacks up against the competition under stock configurations, but we're also going to show how it compares when overclocked. With performance in mind, we're going to compare the maximum overclocked results of the various DDR-2 memory modules PCSTATS has tested in the past which are listed below. Remember, just because memory is clocked fast doesn't mean it's the best thing for a computer. Timings are also important, and getting the right ratio of both is the real key to performance based overclocking!

Maximum Overclocked Speeds - PCstats Results

Maximum Speed w/ Low Latency


Capacity Max Speed


Corsair DOMINATOR Twin2X2048-8888C4DF 4-4-4-12 1024MB 1244 MHz
OCZ PC2-7200 Platinum SLI 4-4-3-15 1024MB 1142 MHz
Corsair DOMINATOR Twin2X2048-9136C5D 4-4-4-12 1024MB

1142 MHz

Corsair Twin2X2048-6400C4 4-4-4-12 1024MB 1000 MHz
Patriot PDC22G8000+XBLK 4-4-4-12 1024MB 1000 MHz
Corsair Twin2X2048-8500C5 4-4-4-12 1024MB 977MHz
Corsair Twin2X2048-6400C3 3-4-3-9 1024MB 888 MHz

Maximum Speed


Capacity Max Speed


Corsair DOMINATOR Twin2X2048-8888C4DF 4-4-4-12 1024MB 1244 MHz
Corsair DOMINATOR Twin2X2048-9136C5D 5-5-5-12 1024MB 1244 MHz
OCZ PC2-7200 Platinum SLI 5-5-5-12 1024MB 1219 MHz
Corsair Twin2X2048-8500C5 5-5-5-12 1024MB 1200 MHz
Patriot PDC22G8000+XBLK 5-5-5-12 1024MB 1155 MHz
Corsair Twin2X2048-6400C4 5-5-5-15 1024MB 1142 MHz
Corsair Twin2X2048-6400C3 5-5-5-15 1024MB 1066 MHz

The Corsair DOMINATOR Twin2X2048-9136C5D is not designed for low latency use (4-4-4-12) which is why it only does moderately well in the low latency testing. High latency, high speed is where the DOMINATOR Twin2X2048-9136C5D shines, and it's pretty darn fast! I think in this case the memory is being limited by the motherboard, it could go faster...

Corsair's Smoking Fast Memory!

Virtually all DDR-2 memory comes with heatspreaders, unfortunately the parts were designed for standards two generations old. In order to effectively cool DDR2 memory at high temperatures the conventional heat spreader design is quickly loosing its usefulness.

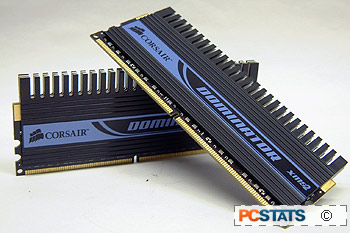

Corsair's new DOMINATOR Twin2X2048-9136C5D memory is a prime example of fresh thinking. Not only has Corsair redesigned the heatspreaders, it's also redesigned the circuit board. Much of the heat from the DDR2 BGA DRAM modules actually conducts through the BGA DRAM solder balls to the circuit board below. With that in mind, Corsair uses copper trace lines and thermal vias to move the heat to a heatsink specifically for the PCB. This system allows the memory to run cooler than if it were just using a conventional heatspreader.

The Corsair DOMINATOR Twin2X2048-9136C5D is meant for overclockers, the memory doesn't discriminate, the price tag does that for it. At $530 CDN ($459 US, £234 GBP) only hardcore overclockers with an nVidia nForce 680i based computer system need apply. Simply saying that you get fast memory with the Corsair DOMINATOR Twin2X2048-9136C5D is an understatement, I don't think there's anything faster available at the moment.

At stock speeds the Corsair DOMINATOR Twin2X2048-9136C5D performs very well, on par with the other DDR2 memory that we've tested recently, but overclocking is this memory's specialty.

With tight 4-4-4-12 timings, the Corsair DOMINATOR Twin2X2048-9136C5D was able to reach a respectable 1040 MHz. Loosening up the memory timings allowed the Corsair memory to fly like no other before, hitting a staggering 1240 MHz with just 2.2V! I'm sure that those of you who are patient will be able to squeeze even more out of the memory, it's just dying to be overclocked.

Now overclocking Corsair DOMINATOR Twin2X2048-9136C5D memory itself may not provide a huge performance boost itself as indicated by the benchmarks... but that's not the real point to all of this. By installing high speed memory like the Corsair DOMINATOR in a high performance overclocking system, you guarantee yourself that the memory will not be the limiting factor when you overclock the rest of your machine. It also allows you to overclock your whole system without running into bandwidth issues (ie the lack of it), because lack of memory bandwidth to the processor can negate any gains achieved by overclocking the CPU itself.

Bottom line, if you're an overclocker with performance hardware facing a memory bottleneck, there is simply no better enthusiast grade memory available on the market right now. Corsair has done an excellent job with its 2GB DOMINATOR Twin2X2048-9136C5D kit!

PCSTATS Recommended Product Award

Find out about this and many other reviews by joining the Weekly PCstats.com Newsletter today! Catch all of PCSTATS latest reviews right here.
