Gigabyte GA-Z77X-UD5H-WB Intel Z77 Motherboard Review
Gigabyte GA-Z77X-UD5H-WB Intel Z77 Motherboard Review  - PCSTATS

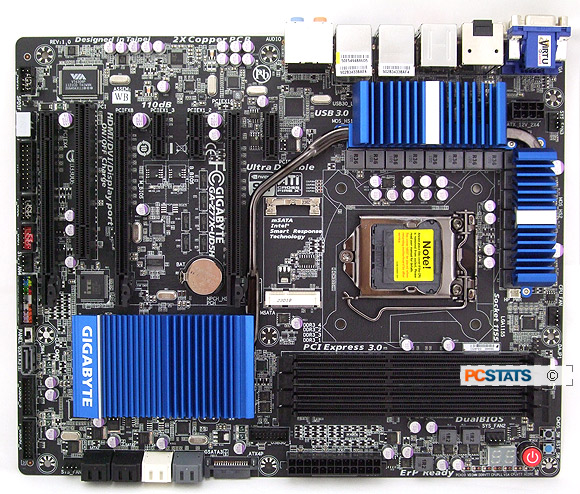

The Gigabyte GA-Z77X-UD5H-WB motherboard is a fully featured mainstream-gaming platform based around the Intel Z77 chipset and bundled with a Wireless 802.11bgn + Bluetooth 4.0 PCI Express x1 card, not to mention all the bells and whistles of a highly expandable workstation platform and a good set of overclocking tools.
 88% Rating:
Filed under: Motherboards Published:  Author:
External Mfg. Website: Gigabyte Apr 12 2013   Max Page
Home > Reviews > Motherboards > Gigabyte GA-Z77X-UD5H-WB

Test System Hardware and Specs

PCSTATS has worked to keep its test hardware static so plenty of comparisons can be made between different chipsets and motherboards. The Intel Z77 platform demands a few critical changes though, so moving forward we're using Microsoft Windows 7 64-bit. For the most part, 32-bit benchmarks see negligible change.

PCSTATS installed 4GB's of high end Crucial Ballistix DDR3-1600 8-8-8-24 memory into the Gigabyte GA-Z77X-UD5H-WB test system. This is some good quick DDR3 RAM and it features thermal monitoring.

Storage devices have changed dramatically in recent years, you'll notice PCSTATS is using a quick OCZ Vertex 2 SSD (120GB, SATAII). The effect on system wide benchmarks is dramatic compared to the old Western Digital Raptor HDD. Thanks to Intel, Crucial Memory, OCZ Technology and Gigabyte for help outfitting this test platform.

Details on how the Gigabyte GA-Z77X-UD5H-WB motherboard was configured for benchmarking - including specific hardware, software drivers, operating system and benchmark versions - is listed in the Test System Spec chart below. Please take a moment to look over PCSTATS test system configurations before moving on to the individual benchmark results.

PCSTATS Test System Specs
test system
processor:

intel core i7 3820
(32nm)

intel core i5 2500k
(32nm)
intel core i5 3570 (22nm)*

amd fusion a8-3850
(32nm)
amd a10-5800k (32nm)

amd Phenom II X6 1090T
(45nm)

Intel Core i7 920
(45nm)
Clock Speed: 36 x 100MHz = 3.6GHz 33 x 100MHz = 3.3GHz
34 x 100MHz = 3.4GHz
29 x 100MHz = 2.9GHz
38 x 100MHz = 3.8GHz
16 x 200MHz = 3.2GHz 20 x 133MHz = 2.67GHz
Socket: Socket LGA2011 Socket LGA1155 Socket FM1
Socket FM2
Socket AM3 / AM2+ Socket LGA1366
Motherboard: - Intel X79 -
Gigabyte GA-X79-UD5

- Intel Z77 -
Gigabyte GA-Z77X-UD5H-WB*
Gigabyte GA-Z77X-UD4H*
Gigabyte GA-Z77X-UD3H
ECS Z77H2-A2X

- Intel Z68 -
Gigabyte GA-Z68X-UD5-B3
Gigabyte GA-Z68X-UD3H-B3
Gigabyte GA-Z68XP-UD3-iSSD

- Intel P67 -
Gigabyte GA-P67A-UD7
Gigabyte GA-P67A-UD4-B3
Gigabyte GA-P67A-UD4
ASUS P8P67 Pro
MSI P67A-GD65
ECS P67H2-A

- Intel H67 -
ASUS P8H67-M Evo
Biostar TH67XE
ECS H67H2-M
Intel DH67BL

- AMD A75 -
Gigabyte GA-A75-UD4H
Gigabyte GA-A75M-UD2H
Biostar TA75M+

- AMD A85 -
Gigabyte GA-F2A85X-UP4
MSI FM2-A85XA-G65

- AMD 990FX
Biostar TA990FXE
Gigabyte GA-990FXA-UD7
ASUS Crosshair V Formula

- AMD 890FX
Gigabyte GA-890FXA-UD7
ASUS Crosshair IV Formula
Biostar TA890FXE
MSI 890FXA-GD70
- AMD 790FX
Gigabyte GA-MA790FXT-UD5P

- AMD 785G -
MSI 785GM-E65

- Intel X58 -
Gigabyte G1.Assassin*
Videocard:

Gigabyte GV-N470SO-13I (Geforce GTX470)

ASUS ENGTS250 DK
(Geforce GTS250)

Memory: x32 - 4GB / x64 - 4x4GB Corsair CMZ16GX3M-4X1600C9 DDR3-1600 9.9.9.24

2x 2GB Crucial Ballistix DDR3-1600 8.8.8.24

2x 2GB Corsair XMS3-1600C8

3x 2GB Corsair TR3X6G1600C8D DDR3
Memory Speed: DDR3-1600 DDR3-1333 DDR3-1333 DDR3-1333 DDR3-1333
Hard Drive: 120GB OCZ Vertex2 SSD (3GB/s SATA II)

*240GB Sandisk Extreme SSD (6Gb/s SATAIII)
120GB OCZ Vertex2 SSD (3GB/s SATAII)
Intel SRT Tests: 74GB Western Digital Raptor WD 740 & 20GB Intel Larson Creek 311 SSD

74GB Western Digital Raptor WD 740 (3GB/s SATA II)
*120GB OCZ Vertex2 SSD (3GB/s SATA II)

Optical Drive:

Plextor PX-B310U Blu-Ray

ASUS BC-1205PT-BD

Power Supply: NoFan P-400A (400W)

Seasonic SS-760KM (760W)

PC Power & Cooling TurboCool 750W

Heatsink: Zalman CNPS11X Performa Heatsink

Intel Reference LGA1155 Heatsink

AMD Reference Heatsink

AMD Reference Heatsink

Intel Reference LGA1366 Heatsink

Monitor (1080p):

ASUS MK241 24" HD LCD

Software Setup: Microsoft Windows 7 Ultiimate 32-bit & 64-bit
Intel INF 9.2.3.1020
nVidia 285.62

Microsoft Windows 7 Ultimate x32/x64
Intel 9.2.0.1025
nVIDIA 266.58

Microsoft Windows 7 Ultimate x32/x64
AMD Catalyst 8.86RC2
nVIDIA 266.58

Microsoft Windows Vista Ultimate
AMD Catalyst 9.12
nVIDIA Forceware 195.62

Microsoft Windows Vista Ultimate
Intel INF 9.1.0.1012
nVIDIA Forceware 182.08

Benchmarks: System Benchmarks: Sysmark 2012, SYSmark 2007, PCMark Vantage, SiSoft Sandra 2011
Gaming B/M: 3DMark 11, 3DMark Vantage, 3DMark 06
