Asus V9950 Ultra Videocard Review
Asus V9950 Ultra Videocard Review - PCSTATS
Abstract: Still the legendary reputation of Asus' quality lives on today, and whenever someone asks for a suggestion on any given peripheral, Asus' name is often thrown into the hat.
 94% Rating:
Filed under: Video Cards Published:  Author:
External Mfg. Website: ASUS Aug 19 2003   C. Sun
Home > Reviews > Video Cards > ASUS V9950 Ultra

Overclocking and System Setup

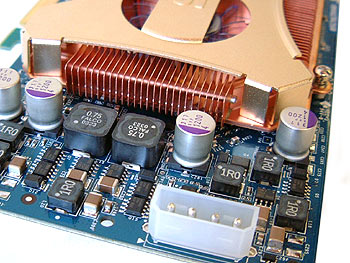

With the rather impressive cooling solution on the Asus V9950 Ultra we were hoping to get some nice numbers from the videocard.

As always we overclock the core and memory independently first to see how high each will go then we overclock them together. Off to the core!

Starting at 450 MHz we began to raise the core speed 5 MHz at a time. 485, 490, 495 MHz blew by quickly as did the 500 MHz core mark. Amazingly the V9950 Ultra had a lot more headroom in it and even broke the 525 MHz mark! The highest we were able to overclock the core without it locking up was 535 MHz and that was with stock cooling!

The memory on the Asus V9950 Ultra was not to be out done by the awesome core overclock. Starting at a relatively lowly 850 MHz we upped the memory frequency slowly. 900 MHz and 950 MHz was passed very easily, even 1 GHz was no problem for the Asus V9950 Ultra! We finally settled for an amazing 1.04 GHz. Anything higher and the memory would start to artifact during 3DMark tests.

Knowing that the core and memory overclocks on the previous GeForceFX 5900 class cards we tested did not play well with each other we knew that we would not be able to run 535/1040 on the Asus.

We were correct, but the max speed the card reached with no problems was 531 MHz core and 1.02 GHz memory which is certainly not bad either! As you'll see this really does boost the benchmarks quite nicely!

pcstats test system specs:

computer hardware:


pentium 4 2.8 ghz

clock speed:

21 x 133 mhz = 2.8 ghz


msi gnb max-fisr




ati radeon 9800 pro (380/680)
ati radeon 9700 pro (325/620)
msi nbox fx5900u-vtd256 ultra (450/850)
albatron geforcefx 5900pv (400/850)
msi g4ti4600-td (300/650)
asus v9950 ultra (450/850)

asus v9950 ultra (531/1020)


2x 256mb corsair xms3500 cas2

hard drive: 40gb wd special ed.
cdrom: nec 52x cd-rom

panasonic 1.44mb floppy drive

heatsink: avc sunflower
powersupply: vantec 470w stealth psu
software setup

windowsxp build 2600
intel inf 5.10.1012
catalyst 3.5
detonator 44.03

workstation benchmarks

commanche 4
gun metal 2
quake iii arena ver 1.17

aa test, af and aa+af test
quake iii arena
