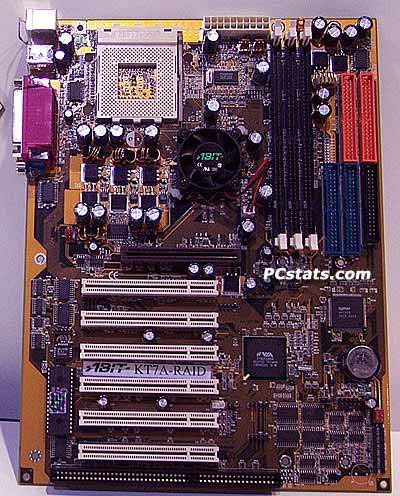

| KT7A-RAID |
| CPU: |
AMD Socket A Althon and Duron
processors running at 200/266 FSB
|
| Chipset:
| - VIA KT133A / VIA 686B
- Advanced configuration and power
management interface (ACPI)
- AGP 2X/4X
- 100/133MHz memory bus
settings
|
| Ultra DMA 100/RAID:
| - High point HTP370 IDE controller
- Ultra DMA 100MB/sec data transfer rate
- RAID 0 (striping mode for boosting
performance)
- RAID 1 (mirroring mode for data
security
- RAID 0+1 (stripping and
mirroring)
|
| Memory:
| - Three 168-pin DIMM sockets support
PC100/PC133 SDRAM module
- Supports upto 1.5GB SDRAM (8, 16, 32,
64, 128, 256, 512MB)
- ECC support
|
| System BIOS:
| - SoftMenu III to set CPU
parameters
- Award plug and play BIOS
- Write-protect anti-virus function by
Award BIOS
|
| I/O Connectors and Ports:
| - 4 Bus master IDE channels supporting
DMA 33/66/100 for upto 8 hard drives
- PS/2 keyboard and PS/2 mouse
connectors
- 1 floppy port (max 2.88MB)
- 1 parallel port (EPP/ECP)
- 2 serial ports
- 2 USB connectors
- On board USB header for two extra USB
channels
|
| Expansion Slots:
| - 1 AGP slot
- 6 PCI slots
- 1 ISA slot
|
| Miscellaneous:
| - ATX formfactor
- Hardware monitoring - fan speed,
voltages, system environment temperature
- Wake on LAN header
- Wake on ring header
- IrDA TX/RX
header
|
