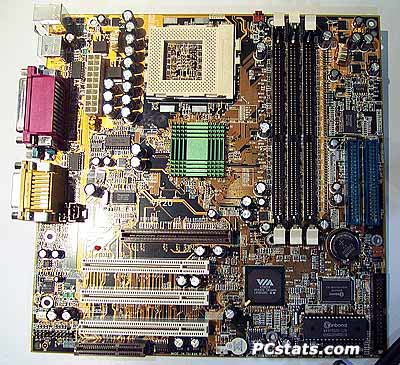

Briefly: Pentium III AGP based micro-ATX motherboard
with AGP 4X, ATA/100 and DDR SDRAM
| VR-20 |
| CPU: |
Intel Celeron Socket 370, Pentium III
CuMine FC-PGA, VIA/Cyrix III processors
|
| Chipset:
| - VIA Apollo Pro 266
(VT8633/VT8233)
- Advanced configuration and power
management interface (ACPI)
- AGP 2X/4X
- 200/266MHz memory bus
settings
|
| Memory:
| - Three 184-pin DIMM sockets support
PC200/PC266 DDR SDRAM modules
- Supports upto 3.0GB SDRAM (8, 16, 32,
64, 128, 256, 512, 1024MB)
|
| Audio:
| - AC'97 2-channel audio CODEC on
board
- Audio drivers
included
|
| System BIOS:
| - Award plug and play BIOS
- Write-protect anti-virus function by
Award BIOS
|
| I/O Connectors and Ports:
| - 2 Bus master IDE channels
supporting DMA 33/66/100 for upto 4 IDE devices
- PS/2 keyboard and PS/2 mouse
connectors
- 1 floppy port (max 2.88MB)
- 1 parallel port (EPP/ECP)
- 2 serial ports
- 2 USB connectors
- On board USB header for two extra USB
channels
|
| Expansion Slots:
| - 1 AGP slot
- 3 PCI slots
- 1 CNR slot
|
| Miscellaneous:
| - microATX formfactor
- Hardware monitoring - fan speed,
voltages, system environment temperature
- Wake on LAN header
- Wake on ring header
- IrDA TX/RX
header
|
