ABITs Newest Motherboards for 2001
ABITs Newest Motherboards for 2001 - PCSTATS
New motherboards from Abit? That's right, and it looks like a whole lot are on the way! We have 8 newbies to show you!!
Filed under: Motherboards Published:  Author:
External Mfg. Website: ABIT Dec 28 2000   Max Page
Home > Reviews > Motherboards > ABIT

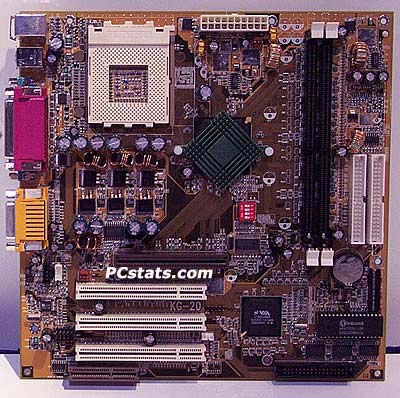

KG-20 Motherboard

Briefly: AMD socket A microATX motherboard with AGP 4X, ATA/100 and DDR SDRAM

KG-20
CPU: AMD-K7 Socket A Althon and Duron processors running at 200/266 FSB
Chipset:
  • AMD 761/VIA 686B
  • Advanced configuration and power management interface (ACPI)
  • AGP 2X/4X
  • 200/266MHz memory bus settings
Memory:
  • Two 184-pin DIMM sockets support PC200/PC266 SDRAM modules
  • Supports upto 2.0GB DDR SDRAM (8, 16, 32, 64, 128, 256, 512, 1024MB)
Audio:
  • AC'97 2-channel audio CODEC on board
  • Audio driver included
System BIOS:
  • DIP switches to set CPU parameters
  • Award plug and play BIOS
  • Write-protect anti-virus function by Award BIOS
I/O Connectors and Ports:
  • 2 Bus master IDE channels supporting DMA 33/66/100 for upto 4 IDE devices
  • PS/2 keyboard and PS/2 mouse connectors
  • 1 floppy port (max 2.88MB)
  • 1 parallel port (EPP/ECP)
  • 2 serial ports
  • 2 USB connectors
  • On board USB header for two extra USB channels
Expansion Slots:
  • 1 AGP slot
  • 3 PCI slots
  • 1 CNR slot
Miscellaneous:
  • microATX formfactor
  • Hardware monitoring - fan speed, voltages, system environment temperature
  • Wake on LAN header
  • Wake on ring header
  • IrDA TX/RX header
