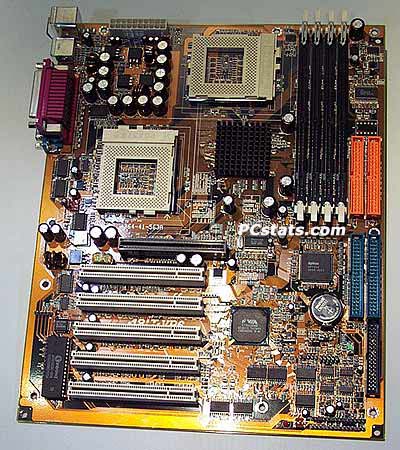

Briefly: Dual FC-PGA Socket 370 motherboard with AGP 4X,
Ultra DMA/100. Softmenu III and RAID 0/1
| VP6 |
| CPU: |
Dual Intel Pentium III CuMine FC-PGA
socket 370 processors running at 66/100/133MHz FSB
|
| Chipset:
| - VIA Apollo Pro 133A chipset (VT82C694X
and VT82C686B)
- Advanced configuration and power
management interface (ACPI)
- AGP 1X/2X/4X (sideband) 3.3V
devices
|
| Ultra DMA 100/RAID:
| - High point HTP370 IDE controller
- Ultra DMA 100MB/sec data transfer rate
- RAID 0 (striping mode for boosting
performance)
- RAID 1 (mirroring mode for data
security
- RAID 0+1 (stripping and
mirroring)
|
| Memory:
| - Four 168-pin DIMM sockets support
PC100/PC133 SDRAM module
- Supports upto 2.0GB SDRAM (8, 16, 32,
64, 128, 256, 512MB)
- ECC support
|
| System BIOS:
| - SoftMenu III to set CPU
parameters
- Award plug and play BIOS supports APM,
DMI
- Write-protect anti-virus function by
Award BIOS
|
| I/O Connectors and Ports:
| - 4 Bus master IDE channels supporting
DMA 33/66/100 for upto 8 IDE hard drives
- PS/2 keyboard and PS/2 mouse
connectors
- 1 floppy port (max 2.88MB)
- 1 parallel port (EPP/ECP)
- 2 serial ports
- 2 USB connectors
- On board USB header for two extra USB
channels
|
| Expansion Slots:
| |
| Miscellaneous:
| - ATX formfactor
- Hardware monitoring - fan speed,
voltages, system environment temperature, plus one thermal header for
remote thermal monitoring
- Wake on LAN header
- Wake on ring
header
|
