How Motherboards Are Made: A Gigabyte Factory Tour
How Motherboards Are Made: A Gigabyte Factory Tour - PCSTATS
Abstract: PCSTATS takes you on a guided tour of Gigabyte's Motherboard Factory in Taiwan. There's a lot to producing and testing a single motherboard; a mind-boggling host of automated machines, people and processes. Gigabyte has several other factories in Taiwan and mainland China that each manufacture motherboards, videocards, and other products.
Filed under: Beginners Guides Published:  Author:
External Mfg. Website: Gigabyte Jul 29 2019   M. Dowler
Home > Reviews > Beginners Guides > Gigabyte

Flowing Over The Molton Solder

PCstats Gigabyte Factory Tour

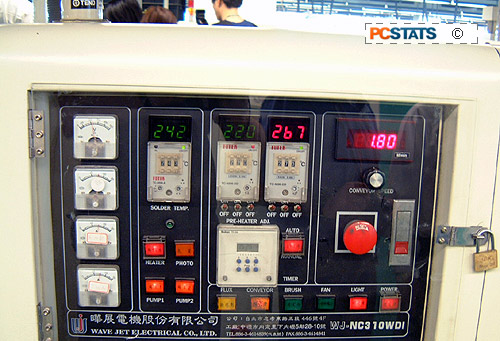

Control panel for the wave solder machine. Hot!

PCstats Gigabyte Factory Tour

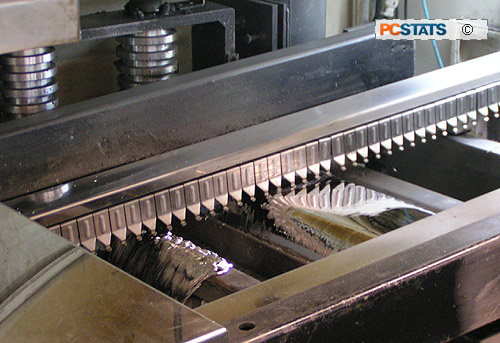

Inside the solder wave reflow machine. Note the 'waves' of liquid solder at 242 degrees Celsius

PCstats Gigabyte Factory Tour

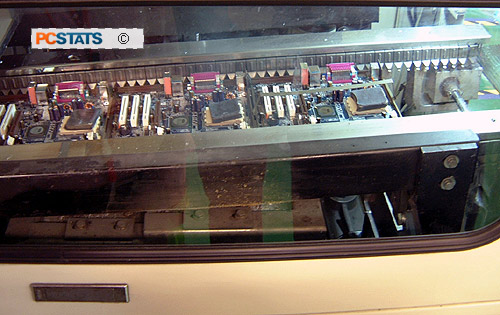

Motherboards going through the solder wave machine

PCstats Gigabyte Factory Tour
Motherboard passing over the 'wave' of liquid solder.
